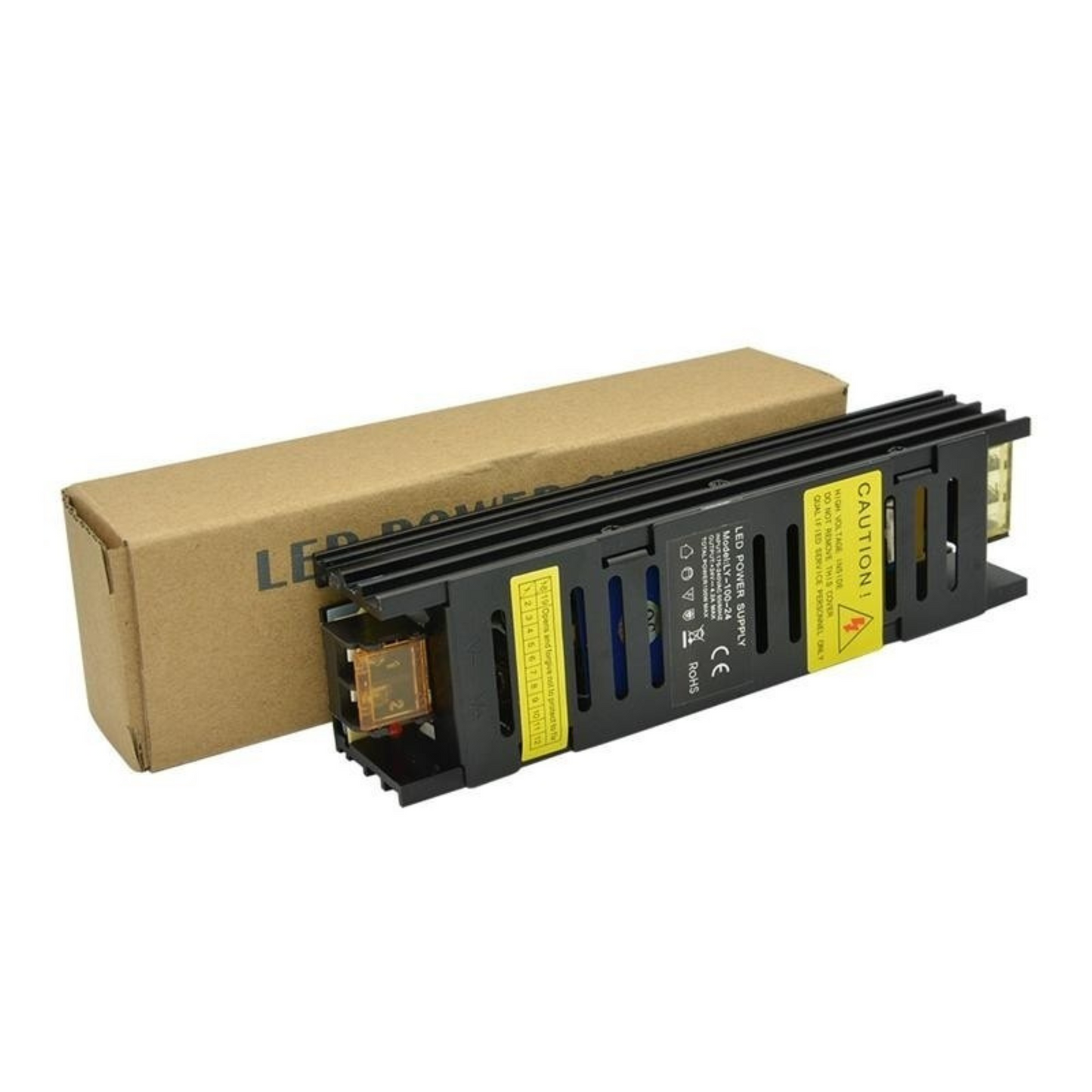

100W Indoor LED Power Supply, 24V, 4.16A – Transformer Converter IP20
100W Indoor LED Power Supply, 24V, 4.16A – Transformer Converter IP20
SKU:LY-100-24
Couldn't load pickup availability
- 24V, 4.16A Output
- Indoor use IP20
- 166×42.5×30.5mm
The LY-100-24 SANPU Power Supply Driver, renowned for its durability, is a preferred choice for LED lighting applications. Encased in a sleek aluminium black shell, it offers a robust 100W output at 24VDC, with a wide input voltage range of 175-240VAC. Designed for efficiency, it features a fanless heat sink cooling system, ensuring quiet operation. Additionally, it boasts essential protections against short circuits, overloads, overvoltages, and overheating, making it ideal for indoor use or installation in rainproof enclosures.
- Aluminium black shell, only used in LEDs field.
- IP20 non-waterproof, indoor use or installed in a rainproof box.
- Fanless heat sink cooling design, no noise from the fan.
- 100% full load burn-in test. Usable 0W ~ 100W but advise 50W ~ 80W.
- Protections: short circuit, overload, over-voltage, over-heating.
| Weight | 0.48 kg |
|---|---|
| Brand |
SANPU |
| Wattage |
100W |
| Output Voltage |
24V DC |
| Voltage Tolerance |
+/- 5% |
| Output Current |
4.16A |
| Efficiency |
86% |
| Ripple & Noise |
<120mVp-p |
| Input Voltage |
175-240V AC |
| Input Current |
0.83A / 230V AC |
| Power Factor |
>0.6 |
| Operation Temperature |
-20°C to +60°C |
| Product Dimensions |
166×42.5×30.5mm |
| Body Colour |
Black |
| Material |
Aluminium |
| IP Rating |
IP20 |
