• DC24V Digital LED strip • Soft FPCB material, the strip can be cut off or folded freely • Easy installation, remove the back glue sticker and stick anywhere directly • Best ability for heat dissipation and low luminous decay
Parameters
Product Name:
COB RGBW SPI Strip
Model No.:
SPI4N01C
Input Voltage:
DC24V
Power/M:
R, G, B, W: 7W/m, 28W/5m
Luminous Flux：
W: 370LM/m, 1600LM/5m
Chip:
WS2814
LED Chip QTY:
784/M
CRI:
90
Beam Angle:
120°
Pixel points:
14 Pcs/m, 70 Pcs/5m
Board Thickness:
2.5oz（Front 1 oz, Back 1.5 oz）

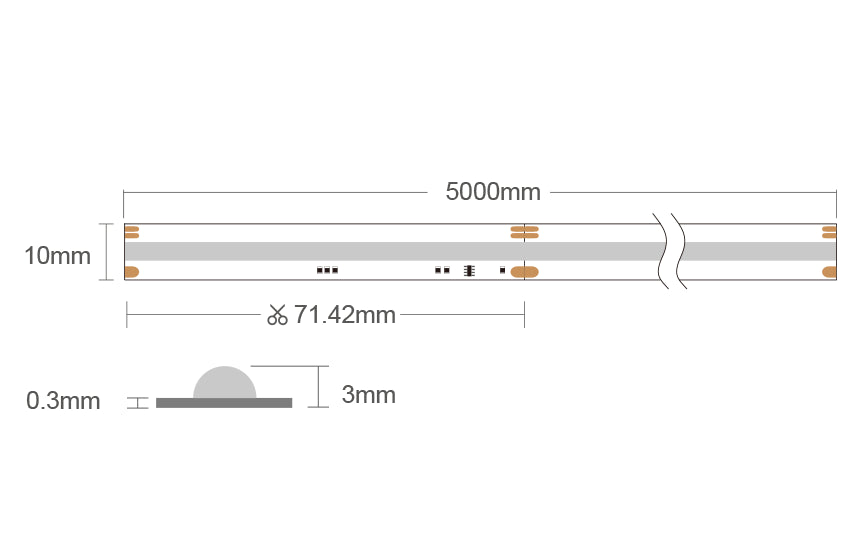

Width:
10mm
Tailor Length:
71.42mm
IP:
IP20
Working Temperature:
-10~40℃
Size:
10x3x5000mm
Packing:
5M/R
Warranty:
2 Year
Features:
The LED strip is built with a WS2814 chip, 14 pixels points per meter
Compatible with Miboxer SPI controller series
Dim dynamic lighting via SPI controller and remote
Soft FPCB material, the strip can be cut off or folded freely
Portable installation, remove the back glue sticker and stick anywhere directly
